Measurement Report Directory
introduction
A list of routers out of the box
Second, the router details
Third, the web UI interface and App UI interface
Fourth, the router speed test
Wireless speed
2.Wired speed
Fifth, WiFi signal coverage test
Sixth, daily WiFi experience
Seven, characteristic function experience
1TGP customization: full network acceleration, exclusive port, update package pre-download three major game features
2 game testing
Eight, teardown decryption hardware structure
Nine, glory Router Pro game experience summary
---------------------------------
introduction
This should be said to be a special game router specially designed by Glory for its cooperation with Tencent TGP (Gaming Platform) . It is customized based on Glory Routing Pro .
The glory router product line has also introduced several products. Fortunately, this product has been in contact. Among them, WS832 has also been published on the SMZDM experience, when the early firmware has a BUG is that the intranet LAN transmission is not to copy the data at the actual transfer speed (at the time was also somewhat strange), the late firmware is enabled "Hilink" will have obvious advertising implants after its glory box. Glory WiFi WallPay In order to expand wireless signal coverage at home, it is indeed an idea to transfer WiFi (power cats) and convert WiFi extensions (mainly bridging) over the grid, but extended WiFi signals often leave many wireless devices in a tangled situation ( Switching WiFi frequently causes dropped calls).
Basically we basically use WiFi as the signal coverage basically these five modes: AP (access point) mode , Router (wireless routing) mode , Repeater mode , Bridge mode , Client End) mode .
AP (access point) mode: It can be understood as a wireless signal generator that does not have a routing function. Because it lacks a routing function, it is equivalent to a wireless switch and merely provides a wireless signal transmission function. Basically with router functions are enhanced version of AP+
Router mode: This is also the most widely used mainstream function and the most commonly used mode. It needs to input the information provided by the ISP (Internet Service Provider). Basically all rely on modems (cats), or fiber port transceivers (light cats)
Repeater mode: It is also one of the most commonly used modes at present. As a wired user who does not like to take the open line, the wireless WiFi extension is also a more convenient method. It is a way to extend the wireless signal coverage after amplifying the wireless signal. The name of the SSID of the relay must be the same as the SSID name of the original wireless router. The signal of the relay is disturbed by many factors, but it is indeed a feasible method
Bridge mode: One of the less frequently used modes, similar to the relay principle but with the SSID different from the original wireless router after amplification of the wireless signal. Bridging settings are cumbersome and not very convenient to use
Client mode: Basically, it can be said that very few people use this mode. The main reason is to use the wireless router as a signal receiving network card, and it is more suitable for desktop computers without internal and external wireless network cards. Setup is also very tedious, most routers no longer support this feature
A list of routers out of the box
Steps to dismantle the express parcels, directly into the eyes of the glory Router Pro game version
The packaging style is more beautiful than the regular version, with a sense of game theme
The logo on the top is also very arrogant, domineering exposed (if the logo is a breathing light, then the night effect must be more dazzling)
Glory Route Pro Game List Checklist : Router ×1 , Instruction Manual ×1 , AC Power Adapter ×1 , Network Cable ×1
The back of the router is distributed as follows: AC power port ×1 , Gigabit WAN×1 , Gigabit gaming port Game LAN×2 , Gigabit LAN×2 , USB 2.0
Power Rating: 12V-2A , Model: WS851
Flat Cable, soft texture, all black wire is not easy to dirty (if the words are dirty, it is not obvious)
No Logo Power Adapter on the Back
HuntKey OEM power adapter, output 12V-2A
At the top, the logo is still very fanciful. If it becomes a breathing light, it will be more exciting.
Second, the router details
(Part of the comparative glory routing Pro ordinary version material comes from the Internet, the original picture is only required for reprint, hereby explain)
Glory Routing Pro Normal Edition : Smart Bandwidth with 4 levels of adjustment : fair play , game priority , video priority , web first
Glory Route Pro Game Edition : Game Acceleration , with 3 features : Game Acceleration , Pre-download Update Package , TGP Experience Acceleration (1.1x)
Glory Routing Pro Normal Edition : Piano paint glossy , can not effectively anti-fingerprint
Glory Route Pro Game Edition : matte paint matte , can effectively prevent fingerprints
Glory Routing Pro Regular Edition : White AC Power Adapter , White Flat Cable
Glory Route Pro Game Edition : Black AC Power Adapter , Black Flat Cable
Glory Routing Pro Regular Edition : Firmware Version 1.1.21.1
Glory Route Pro Game Edition : Firmware Version 2.1.16
Basically, it can be seen from the above that the ordinary version and the game version have these differences. As for the difference value of 100 yuan, it is still worthwhile for the valued friends to judge.
Third, the web UI interface and App UI interface
1 web page UI interface
Just after the power is set up and restarted, you can connect to the network. You can find that there are upgradeable firmwares that can be upgraded. The homepage interface is clear at a glance whether the network is normal or the number of terminal devices. External storage devices (USB sticks, removable hard disks) plugged into the USB interface will be recognized, moving the mouse over the icon will show the storage capacity
I want to go online , set up on the Internet
My WiFi , WiFi power mode can be selected: Sleep, Standard, Through Wall
Router information
Upgrade management can automatically upgrade without manual operation, worry and effort
Network bandwidth speed
WiFi settings
Toolbox : Tencent Game Assistant
Login management interface
Game Edition exclusive " game acceleration " interface, when there is TGP binding will automatically identify the game update list
Terminal device management interface
Thunder remote download interface
Other brands of wireless routers support Thunder remote download also need to be bound
The file sharing service supports file system reads and writes of the following storage devices: FAT32/FAT , NTFS , HFS+ , Ext2/3
Need to enter in the browser: file://192.168.3.1 to access (Windows operating system users)
File sharing FTP settings, using the Kingston MobileLite G4 as an external storage device, the router identified as Realtek_usb2_1. Although Glory Routing Pro is USB 2.0, considering that external storage does not want to drag and choose USB 3.0 (at least USB 2.0 can make full use of)
About 6.56GB video is copied from the local SSD disk, and the average transmission speed is 10MB/sec at 5G WiFi
About 6.56GB of video is copied from a local SSD disk, and the average cat power grid transmission speed is 8.75MB/sec.
2App UI interface
Huawei Hilink App , a total of 2 pages of function menus : User Management , WiFi Mode , Game Acceleration , Routing Storage , Guest WiFi , WiFi Timer Off , Zhilian , One Touch Experience
User Management
WiFi mode : sleep mode , standard mode , wall-through mode
Game acceleration
Guest WiFi : Password can be set, or the password can be used to control the usage time through the opening time, allowing 4 hours , one day , and permanent use of guest WiFi.
WiFi timed off : The router takes a long time to rest, set time to close or travel can also choose to close
Hilink : All connected wireless devices will be displayed in Zhilian
Parents of children at home can use this feature to limit the time for children to go online.

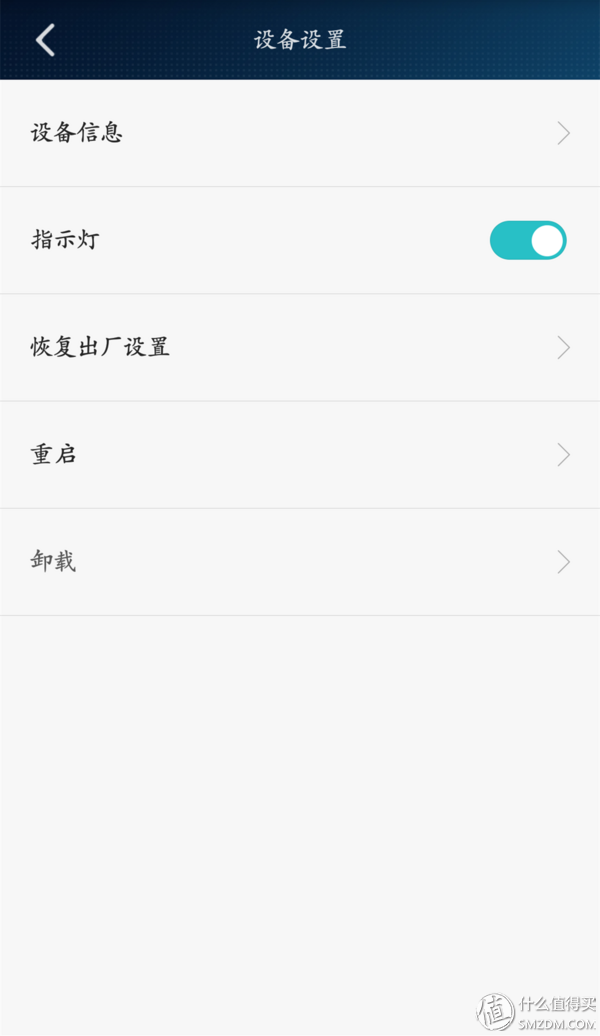

Set interface
Can turn on or off the indicator
Internet applications (plug-ins) will only support: Thunder remote download; for this experience, this function is completely regrettable
The router can be upgraded automatically to avoid upgrading when it is used, which seriously disturbs the user experience (say, your Windows 10 upgrade service interrupts)
Fourth, the router speed test
Environment: China Telecom 100M Fiber
Router: Glory Route Pro Game Edition
Notebook: Shenzhou notebook Intel-7260AC
Mobile Phone: OPPO R9
Wireless speed
5G WiFi download speed is 10.1MB/s
2.4G WiFi download speed is 7.94MB/s
5G WiFi connection speed: 135Mbps
5G WiFi connection speed: 65Mbps
5G WiFi connection speed: 526M, signal strength (54dBm 45%)
2.4G WiFi connection speed: 300M, signal strength (48dBm 52%)
QQ computer housekeeper 2.4G WiFi test speed 7.3MB/S
QQ computer housekeeper 2.4G WiFi test speed 8.1MB/S
2.4G WiFi Single Thread Download 5.83M/S
2.Wired speed
(Power cat) cable download speed is 7.94MB/s
QQ Computer Butler (Power Cat) Wired Test Speed ​​7.3MB/S
Fifth, WiFi signal coverage test

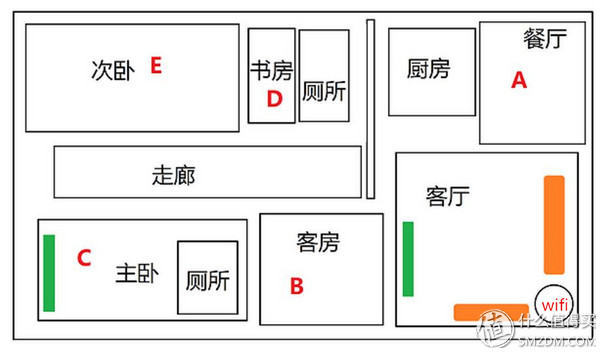

Taking into account the use of the home environment, mainly to test the 2.4G WiFi signal coverage
A
B
C
D
E
Found that the community upstairs and downstairs to receive the WiFi signal detected in 2.4G wireless router there are 13 of which there are 7 TP-LINK, 1 Xiaomi, 1 unknown (Lenovo traditional models), 1 Netcore, 2 Tenda, 1 unknown (Home is Glory Route Pro game version). It can be said that the vast majority of consumers are nearly 11 (84%) of the users of traditional router brands, and 2 are able to use smart routers. They are: Millet, Glory Route Pro Game Edition (15%)
It is a pity that there are no 5G signals nearby, and it is true that every room travels. It seems that the current 5G is still not universal, at least this building upstairs is downstairs. The Po master is not searching for 5G signals on the 7th floor, 8th, 9th floor, and 5th and 6th floors (it does not search for the signal source on the first floor), but only searches for his own 5G signal. I remember that the friends on the 5th floor knew that the router that supports 5G signals was able to search for a signal source six months ago. When I happened to come across from work, I encountered the friend and consulted him. (later never started)
Sixth, daily WiFi experience
Before using 100M 100M network router to see online video on demand with wired better than wireless, remove the built-in wireless network card hardware and weak antenna effects, basically the effect of the wireless signal transmission of the router affect the picture quality, the higher the picture quality The bandwidth requirement is also high. Therefore, high-quality video will need to be stuck and buffered, and the intuitive feeling of use is not smooth.
Later, use 1000M Gigabit Ethernet port router to watch online video on demand with wireless or wired are the same smooth, remove the built-in wireless network card hardware and antenna weak influence, basically the effect of the wireless signal transmission of the router affects the picture quality, painting The higher the quality, the higher the bandwidth requirement. Therefore, after the bandwidth requirement is reached, high-quality video will no longer need to be stuck and buffered, and the intuitive feeling of use is smooth.
It can be said that it is recommended to purchase Gigabit Ethernet Pro Game Edition for Gigabit Ethernet, which will have a better wireless experience.
Seven, characteristic function experience
1TGP customization: full network acceleration, exclusive port, update package pre-download three major game features
The highlight of the TGP game platform is the privilege that can be supported
Use Glory Route Pro Game Edition to gain 1x experience bonus
Game Updates (Pre-download Automatic Updates)
Support Tencent Tencent TGP All Games Start Up
Even the League of Legends can choose to accelerate intelligence or force acceleration . Normal intelligence acceleration is stable at 14ms , and forced acceleration is stable at 6ms.
The best solution to enable Smart Acceleration is to insert the cable into the Game LAN with a wired cable so that the game acceleration will be prioritized and stable at a delay value.

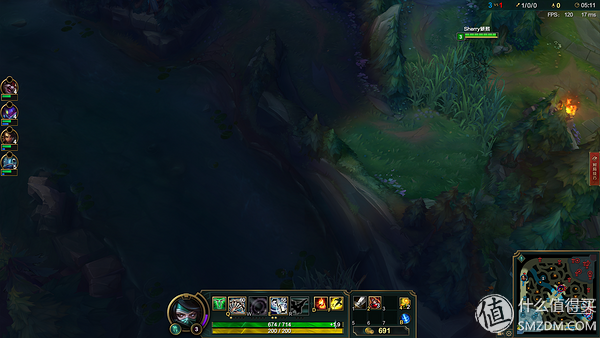

2 game testing
No smart-accelerated, non-Game LAN ports, 17ms delay (100M China Telecom fiber-optic bandwidth speed)
Enable Smart Acceleration, Game LAN Port, 12ms Delay (100M China Telecom Fiber Optic Bandwidth Speed)
Basically, there is indeed a significant delay in the acceleration of a game that is not turned on by a player, and the delay after the game is accelerated is basically stable and does not fluctuate numerically.
The Storm Heroes are running, watching television at home and watching videos on mobile phones don’t need to worry about getting stuck. For MOBA games, it’s still a very good thing.
Sometimes when playing online games, they are most afraid of high delays. In order to avoid the effects of watching videos from the family, they have done a test. In order to increase the Ping value while using the CMD Ping command and ZPing to consider, it appears in 1000 PINGs. Loss of packet conditions.
Eight, teardown decryption hardware structure
Glory Router Pro game version uses the real crab PA+LNA chipset. At present, the mainstream home wireless router PA+LNA chipset mainly consists of four: Qualcomm Atheros, MediaTek Ralink, and MediaTek Ralink. , Realtek, Broadcom.
Dd-wrt, tomato, openwrt, ubnt support Realtek is undoubtedly unsuccessful, using Realtek chipset is basically unlikely to support dd-wrt, tomato, but in terms of stability, Realtek can still be competent .
2.4G: Realtek RTL8192ER 300Mbps
Single-Chip IEEE 802.11b/g/n 2T2R WLAN Controller with PCI Express Interface
5G: Realtek RTL8812AR 867Mbps
Single-Chip IEEE 802.11b/g/n/ac 2T2R WLAN Controller with PCI Express Interface
Winbond NAND FLASH 128MB
PCB circuit board is thick, chip integration is also high
Hass HiSD5650 (dual-core 1Ghz), the lack of necessary parameters on the sea of ​​ideas from the chip data, its performance indicators and framework is also a loss.
RAM: South Asia 256MB DDR3, in the current high-end router generally 512MB RAM (run memory) can only be said to be sufficient. Taking into account the low-level "smart" wireless router is still 64MB RAM, entry-level "smart" wireless router is only 128MB RAM, then the glory router Pro game with 256MB RAM can only belong to the mid-level "smart" wireless router.
With a built-in PCB antenna, theoretically wireless signals will be better, and 2.4G and 5G are each located on a PCB antenna.
Once in the "Look at the "core" router, to explain the high-end WiFi Soc's wireless router to buy tips" also shared the router to buy the skills, to the family's friends around the company, the company, the dormitory environment to understand the real life Really being able to fully play out the performance of wireless routers is almost non-existent, which means that many people do not think that the most powerful performance, superior wireless signal coverage but a real emphasis on one can use it. Once there are no network problems to solve their own problems or a small number of people, the vast majority of friends to buy a router is to set a parameter after networking to toss and there are few. The sister of our company's front desk once said: Which wireless cable router does it manage? As long as you can access the Internet, let me scan the WeChat to see the circle of friends, grab the red packets, browse the Weibo to see wuli-oba, visit Taobao, Taobao, Jingdong, see Look at the QQ information!
Buying LINKSYS WRT1900AC, LINKSYS AC2600 EA8500, ASUS RT-AC68U, and Netgear 7500 is a few people around. After all, it is the router that is familiar with and understands. The vast majority of ordinary people are more likely to choose brands such as TP-LINK and wireless routers worth less than $100. Some of the so-called Hi-Tech Park industrial parks use "smart" wireless routers such as millet routers and 360 routers. In terms of my personal contact, the traditional brand wireless router is not very good (Asustek, Linksys is still OK, the netware firmware is even more general; domestic brands are almost half a catty level), UI interface The overall experience with the App client is relatively poor; the new Internet brands (fluorite, Thunder, Skyworth, Youku, LeTV, Lenovo newifi) are also unsatisfactory in the UI interface and the overall experience of the App client, personally feel that the entire The so-called "smart router" in the environment: Xiaomi, 360, polar routing, and glory routing are all four brands that are still doing relatively well.
Nine, glory routing Pro game experience summary
This is my third time experiencing glory's wireless device. Before I experience this game version, I have seen glory route Pro's report article on Aunt Zhang (SMZDM), strictly speaking this glory routing Pro game. The biggest change compared to Glory Route Pro is the enhancement of the game acceleration mode. This glory routing Pro game version really highlights the practicality of the game acceleration (network acceleration), from the source of QoS to spread the data pressure of the network, in essence, is to reduce the delay, reduce the loss of data loss and have a dedicated server Line channel; The network acceleration function is more like selecting the corresponding server through the network line to reduce the delay, allowing the router to upgrade the data processing capability of the fixed port (Game LAN) under the heavy load of data traffic such as download, and strengthen the QoS adjustment. The key game (Game) to solve the problem of packet loss. This is similar to many reasons for using ordinary routers to play games but paying for online game accelerators. It reduces delays; the use of QoS to solve the bandwidth division of wireless routers and network acceleration will directly reflect the fact that online games are not stuck. There is no case of high delay.
â—‡ advantages:
1. Enhanced QoS (for Game, the highest priority), support for exclusive TGP network to accelerate server line links; effectively curb the high latency of the game caused by online video, download extreme cases.
2. The UI interface of the web page is clear at a glance, and each function module is also divided in more detail. The parameter setting is simple and clear.
3. Cables for flat wires (much stronger than those provided by traditional wireless routers), length and softness are also suitable.
4. The matte texture of the matte material is better than the glossy piano paint, which effectively eliminates fingerprint traces.
5. There is a dedicated App (mobile client), you can easily set the parameters on the phone.
6. There is a separate Game LAN, which can reduce the delay and pause; more enjoy the fun of the game.
7. Gigabit WAN and Gigabit LAN (5 Gigabit Ethernet ports), dual-core 1G processor and 256MB RAM.
8. Customized TGP privilege features: game acceleration, game update package pre-download, 1.1 times the TGP membership experience bonus.
9. "Hilink" Huawei Smart Link is convenient for IoT's linking devices.
1. The UI of the App client is relatively simple.
2. The built-in Internet plug-in (application) is relatively single: For a Thunder remote download, the game version has a tool box: Tencent Game Assistant.
3. No message interaction, low presence
4. The function of "Hilink" is single, and there are obviously fewer disputes that can be expanded.
5. FTP remote request access is not supported. Data in the file sharing device cannot be directly accessed in Network Neighborhood.
6. Does not support the unified WiFi 2.4G/5G mixed-mode SSID, wireless signal switching is not convenient.
7. There is no game version of the firmware on the download page, and the regular firmware update cycle is long.
8. Limited to TGP game acceleration, non-Tencent game platform online games and international service optimization is not obvious (as opposed to TGP games, in fact, can also), hoping to follow-up to accelerate the acceleration of all games
