It is a toss, this upgrade action is relatively large, basically all blood transfusion, still like to toss a compact ITX small chassis, simple and refined is my style, this upgrade is forcing, because before the ITX motherboard and memory hangs, is That's right, the memory hangs up and it's the first time I've seen it. The motherboard hangs up and the pins are broken. The USB3.0 pin also breaks, so just upgrade the new platform. Now the B85 platform has a little bit of a bottleneck. M.2, plus his own early look on Qiao Sibo's new ITX chassis VR1, in fact, they have two sets of platforms, one haswell platform is Parepad P115EA ITX (E3 1231 V3 + MSI B85i + GTX1060) there is a skylake platform cool Extreme test bench2.0 bare metal platform (i5 6500+ AMD C7H170-M+ XFX R7 250fanless graphics card), but the main machine is of course Prie devil, this upgrade is basically a big shake-up, the platform certainly on the new skylake platform, although Kabylake is also fast (that is, overclocked version, the chipset should not have any higher price increase is meaningless), the graphics card has long been updated and the mother has been out of the box, MSI GTX 1070 GAMING Z, first to the motherboard and memory With the radiator and the wire material tools out of the box, the weather is still hot and kept naked, because these days are busy doing custom lines ready to dry Qiao Sibo VR1
Motherboard:
The motherboard has already taken ASUS Z170I PRO GAMING to give up, because friends are just out of the MSI Z170I GAMING PRO AC motherboard, 930 prices are also considered to save an overhead, I think enough is enough
Attachment two root sata line, because this motherboard comes with all the network card comes with two root antenna, I / O backplane nothing to say, but the gaming series of I / O backplane will certainly bring insulation sponge
specification:
The color of the motherboard is very good, just as friends say it is used for several times. I don't think this motherboard is made of ASUS Z170I PRO GAMING. However, the price is cheap and it also comes with the Intel AC8260 wireless network card, which is enough. The main board is a continuation of the previous generation MSI Z97I GAMING ACK layout, the overall design has not changed much, the various interface location design is considered reasonable, but also easy to match the line is also compatible with the vast number of radiators, named GAMING PRO AC, plus PRO Less K, indicating that this motherboard is not Killer card but intel (no killer is not quite like GAMING style)
I/O Interface: From left to right PS2 keyboard and mouse interface, 2 USB2.0 interfaces (black), 4 USB3.0 interfaces (red), one HDMI and one DP interface, fiber optic interface, intel wireless network card antenna interface, Clear CMOS button, 5 channel audio output interface, one S/PDIF optical digital audio interface. That golden USB interface near the audio part, this is the DAC-USB, the function is to external USB sound card 5V regulator, to ensure pure sound quality, Gigabyte phoenix board also has a similar design, since it is a USB interface can also be used, but the speed is only USB2. 0
The most significant feature of the MSI 100 series motherboards is that they all have DDR4 BOOST memory acceleration engine is the red line on the motherboard, the official promotion is to strengthen the memory power supply circuit for memory stability
The new design of the radiator feels less GAMING dragon elements, but the aesthetic point of view is better to see the texture is also very good, and the heat sink covers an area also increases to help the South Bridge chip cooling
The 6th generation CPU has been changed to the 1151 slot, so it cannot support the CPU of the previous generation 1150, and the slot is also nickel-plated
5 phase power supply, on the surface of the material comparison Z97I GAMING AC also shrink one of which is a little do not understand, 6 generations of platform power supply pressure from the new to the motherboard, this power overclocking is a bit underwinding, but the ITX platform is not too much toss overclocking, After all, the small chassis cooling does not allow, but a closer look at the materials, each power supply material is better than the Z97I, more capacitance, back more than a few bile capacitors, PWM control chip Intersil ISL95585, pure 6-phase PWM , Z97I GAMING AC's PWM is uPI Semi uP1649Q is a 4-phase PWM, which means that this motherboard is pure and true, 5-phase power supply is not in parallel, unlike Z97I GAMING AC three-phase parallel six-phase
4 sata3 interfaces One SATAe interface, black interface SATA is native, two gray SATA must be split by SATAe, meaning you can use I can not use, I can not use your relationship, USB3.0 interface
Intel AC8260, support WiFi 802.11ac (2.4GHz/5GHz) and Bluetooth 4.2 and audio chip Realtek ALC1150, wireless network card so close to the audio chip is estimated to have some interference
The battery is well designed and saves board space
GAMING LAN is Intel I219V network card
M.2 interface PCI-E 3.04 specification, support specification is 2242 and 2260 SSD, unfortunately does not support 2280 this is a bit of a pit father, but there are ways to solve such as the recent introduction of Pu Kete M8E to teach you
Antenna schematic
Before the promotion of Aunt Zhang's activities to buy the odd KM780 keyboard, the keyboard is very good overall, interested to point out my home page to see the open box experience, this time the memory or select Zhiqi, because this memory has long been Zhiqi poisoning, heart grass A few meters long, because a few friends use this memory, Trident Z series is regarded as the highest-end series of odd DDR4, has long been fascinated by the appearance of this memory color, this time to buy, the election is 3200MHZ, Z170 platform must choose a high frequency of memory, 3200MHz is currently the high-end memory mainstream frequency, but the Trident Z frequency is 3400MHZ, but has been out of stock. The Trident Z series is made up of Samsung's single 1GB particle single-sided 8G component. Samsung particles are the most popular.
8G x 2 = 16G, ITX platform only two memory slots must be on a single 8G to meet the demand
Brushed metal process, two different colors, space gray and black with red Qiqi LOGO embellishment at the top, the design is really beautiful, and really got to love it, the color matching and MSI Z170I GAMING AC match, and this memory Also won the German IF Design Award (shown on the package) will not tell you that this memory and pirate ship ruler platinum in the same design company, but found that Chi Qi does not seem to light bars, it seems a bit out of line with the current trend ah
G.SKILL's LOGO is the finishing touch
The information that can be seen by the SN code is 16 years 34 weeks Samsung particles
Kyushu Fengshen's Captain is not aware of the first few revisions. Before the negative news, what's broken, leakage, high noise, this time the EX version is the latest version of a lot of places to improve even the packaging design has changed, but still Red and black dominated, there is a logo of the player storm GAMERSTORM on the upper right, no Kyushu Aeolus LOGO, because the player storm belongs to Kyushu Aeoluonko brand, positioning GAME and high-end
Buckle at a glance, or plastic backsheet is relatively bad review
If the small chassis can support 120mm cold row, then on the water, as a small chassis users have enough of those who press down the radiator, although the pressure directly solve the CPU cooling and indirectly solve the motherboard cooling, but the small chassis can not be too good The air duct itself is compact and designed to use underpressure too easy to accumulate heat, all 120 rows are suitable for special itx or mtax small chassis, to ensure that the chassis air ducts quickly remove the CPU temperature from the chassis through the cold exhaust fan to ensure the inside of the chassis Do not gather heat, improve the stability factor of the entire platform.
The biggest change in the new EX is the use of this type of rubber hose that is integrated with the Corsair's water-cooled rubber hose and is woven. Compared to the previous version of the FEP bellows, the texture is better, but FEP is more suitable for water cooling. The life of the tube is better than that of the rubber hose, but humans are visual animals and they like to force it to look good.
The EX version has changed the fasteners, and the previous fasteners will appear to have a miraculous twist. The cold head will not find any changes, but it feels better.
Kyushu captian is the most eye-catching or this exposed water-cooled tube, not only looks good and forcing high, the top is the so-called crater will emit a red breathing light, does not support discoloration. The top ring scale is made of metal, but I feel like a jet airplane's tail engine when the red breathing light is emitted. Purely personal YY
The base of the water-cooled head is pre-made with silicone grease, so no silicone grease is provided for this product.
Fan from the GP120 to TF120 dual-blade fan, blade design more than a special diversion slot design, the official declared that the wind pressure is more suitable for cold row, GP120 I also put the white high speed noise is indeed more moving, the new fan is better Fan parameter DC12V, 0.12A
I also no longer complained about the video card to see me out of the box test it, because the MSI GTX 1070 GAMING Z is also considered a new cargo out of the box, but unexpectedly the whole network actually I was the first, actually nobody bought this card, a lot People looking for me to GAMING Z bios, file I will put behind
Do line tool material:
As there are plans and plans to install custom lines can not be less, as the saying goes, good hands-on food and clothing, for the small chassis or their own hands-on measurement of wire distance, so that I can be satisfied with the track, also considered to give the host my soul
SN-48B old driver recommended 166 to hand
FF46-2 silver-plated wire is a roll of 95 meters 134 bags, 95 meters is estimated to be enough to do a few sets, FF46-2 cross-section 1.0mm is 18AWG silver plated line, did not dare to buy 16AWG is estimated to be very hard.

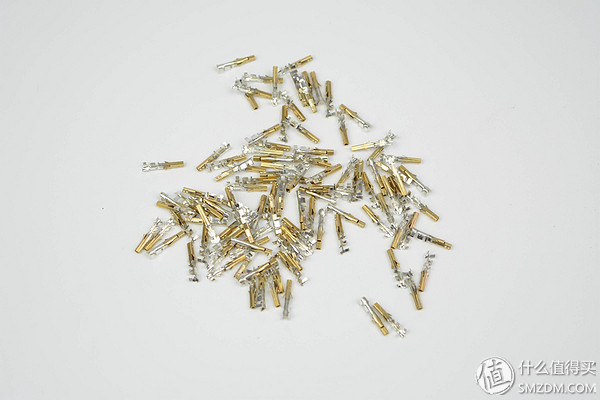

Because it is ready to use XFX XTR550, this power supply is pure rhyme pedigree power supply, so I chose the original YinYiYing YY gold-plated terminal
Jie Shi Mei module connector
Lights up the chassis test:
First remove the i5 6500 on the breast machine and install the lighting test to see if you are considering the i7 6700K or the i5 6600K, because you have to wait for the chassis to test the heat dissipation.
The new version of the captian 120EX buckle is really good, the force area is even, really not afraid to twist the cold head
Trident Z is really beautiful, pretty and pretty on the motherboard, has been poisoned, really liked it, loved it.
MSI Z170I PRO GAMING AC south bridge heat sink glare effect is really very good, very texture
Trident Z is really beautiful and can't help but take a few more shots
Test configuration:
CPU: i5 6500 (lighting test)
Motherboard: MSI Z170I PRO GAMING AC
Memory: Zhiqi Trident Z DDR4 3200MHz 8G2
Graphics card: MSI GTX1070 GAMING Z
Radiator: Kyushu Aeolus captian 120EX
Storage: Plextor M7V 128G+ Micron MX200 250G
Power Supply: Yinxin SX600-G
The DRAM frequency shows 1600MHz multiplied by 2 equivalent 3200MHz. This frequency can't be believed in the era of DDR3. For the first time, it uses so high-frequency memory.
GPU-Z information, the default frequency is 1658Mhz, memory frequency is 2027MHz, Boost frequency is 1860MHz, and bios version is 86.04.1E.00.01. You click on the hyperlink to download the bios, but people in the industry say that it is not recommended to GAMING X to brush GAMING Z's bios. First try the test is feasible
With GPU-Z comes with PCI-express Render Test rendering test, the maximum Boost frequency of 2025MHz, this generation of graphics cards do not basically need to overclock, the frequency is too high, think of the graphics card frequency picture is difficult, now are 2GHz
Memory test:
AIDA64 memory cache benchmark, look at the memory item, because the time occupied with the i5 6500 3.2GHz light machine so ignore the cache results
Video card running sub test:
The industry standard 3D MARK series
3DMark 11 Extreme:
Score 8464, with a score of 8405. This score is simply not saliva, and it is more violent than GTX1080 non-centimeter minutes.
3DMark11 Performance :
Score 17416, graphic 26503
3DMark Fire Strike:
Score 14693, graphics divided into 19659
3DMark Fire Strike Extreme:
Score 8311, graphics are 9259
3DMark Fire Strike Ultra:
Score 4504, graphics divided to 4533
Video card power consumption temperature noise test:
Furmark baking machine test, the graphics card maintained at a maximum temperature of 68 °C, fan 50% speed, speed is maintained at around 1500RPM, quite muted less than 40dBA, because TDP limited core frequency is only 1860.0MHz, does not reach the maximum 2025MHz, the whole power consumption Keep around 254W
CPU temperature test:
I5 6500 this U can not fully play the performance of the Kyushu captian 120EX, in the AIDA64 single-point FPU floating point pressure test roasting machine temperature core is also the highest 46 degrees Celsius, no pressure, the new version of the EX version of the TF120 blade design more than a few special guide Flow slot design, new fan is really better than previous version of GP120 noise control
What equipment is all on the same poor chassis, the chassis to be tailored to the power cord will take a few days, just during the Mid-Autumn Festival to get, it is estimated that next week made a beautiful installation show, the end
