Running insole uses Nordic Semiconductor's nRF51422 multi-protocol SoC to capture running data on iOS and Android smartphones and sports watches
Nordic Semiconductor announced that the domestic running (Xiamen) Information Technology Co., Ltd. has selected the nRF51422 multi-protocol system-on-chip (SoC) to help runners improve their Podoon pressure-sensitive smart insole. This insole is equipped with the ANT+ and Bluetooth® low energy (formerly Bluetooth Smart) wireless connectivity with the nRF51422 SoC's unique multi-protocol support.

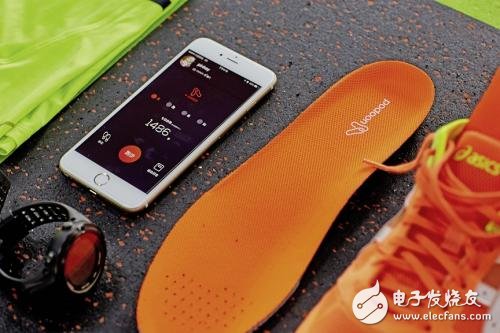

The Podoon pressure-sensitive smart insole is made of EVA material and is embedded with a 0.2 mm thick flexible film pressure sensor for collecting runners' running data, which is then received on a smartphone or smart watch, via a display or via voice notification. Inform the runner. In addition, users can view data after running to improve their running posture, prevent damage, and improve overall running performance by running suggestions from the app.
When in use, the user removes the original insole from the running shoe and replaces it with a running insole, which is automatically activated after two seconds. After downloading the running app on a compatible iOS or Android phone, the user can pair the insole with their device and select “Start Runningâ€, then the insole starts to record data, including running posture, landing mode, stride frequency, touchdown time, and vacating the ground. Ratio, knee load index, over-striding, and internal rotation. The Podoon pressure-sensitive smart insole can also be used in "offline" mode, and once connected to the running app, the data is automatically synced to the user's device.
Zheng Hao, founder and CEO of Running (Xiamen) Information Technology Co., Ltd. said: "Most people run for health, but 80% of runners are injured because of running. The reason is usually incorrect running. Running posture is It is vital that the runner is safe, healthy and harmless, and the foot pressure data is the secret to detecting the running posture. We are determined to be the runner's first private running coach."
“Traditional smart running shoes use a built-in three-axis accelerometer to detect running postures. However, the membrane pressure sensor of the Podoon pressure-sensitive smart insole provides richer and more accurate data than accelerometers.â€
The nRF51422 SoC device integrates a 32-bit ARM® CortexTM M0 microcontroller, 2.4GHz radio, 256kB/128kB flash, and 32kB/16kB RAM on a single chip. This powerful, highly flexible, multi-protocol device ensures simultaneous interoperability between the Podoon pressure-sensitive smart insole and iOS and Android phones, as well as ANT+ or Bluetooth 4.0 (or newer) sports watches such as Garmin devices.
The Podoon pressure-sensitive smart insole is powered by a CR2032 coin cell battery. The battery life depends on the duration and frequency of the run and the number of devices connected at a time. In the usual "sport mode" operation, the battery provides 18 months of power and is used in standby mode for up to three years. One of the reasons is the ultra-low power consumption of the nRF51422 SoC device.
Zheng Wei said: "We have considered the possibility of achieving ANT+ compatibility since the beginning of the design process. Nordic's Bluetooth and ANT+ multi-protocol solutions are in the leading position in the industry. Therefore, we have chosen the company's solution from the beginning. This is the first time that we have worked with Nordic, and the company has provided very professional and very timely support."
